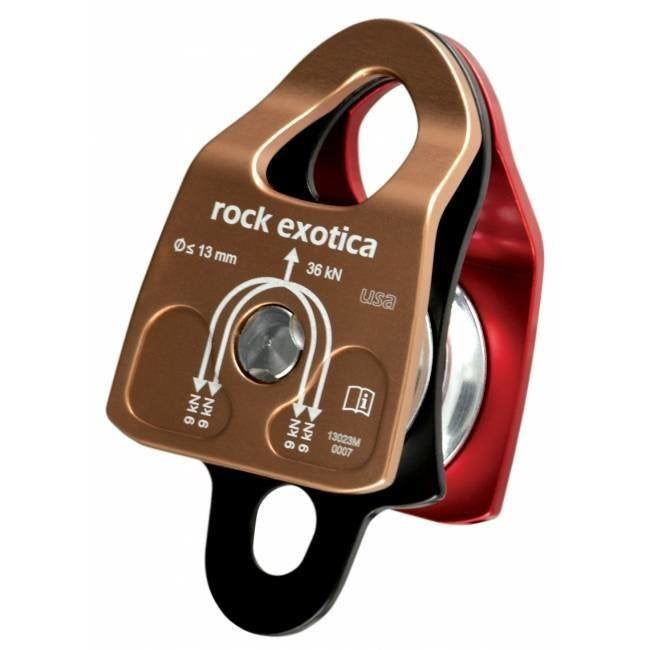

Rock Exotica Machined Rescue Pulley Double

The machine pulley is milled from a block of 7075 aluminum so that we can remove material where it is not needed and leave the rest. The pulley shaft is machined as part of the side plate. This allows us to use a flat head shaft screw. Therefore, these pulleys are more compact, stronger and lighter than the usual die-cut pulleys.

Machined Rescue Pulley Double
- Lightweight pulley with low resistance factor and high breaking strength
- Individual serial number
- Aluminum alloy 7075, milled from 1 solid piece of aluminum

Specifications

• Weight: 254 grams
• Breaking strength: 2 x 9 kN x 2 = 36 kN
• Working value: 2 x 4 kN x 2 = 16 kN
• Max rope diameter: 13 mm
• Disc diameter: 38 mm
• Standards: EN 12278
