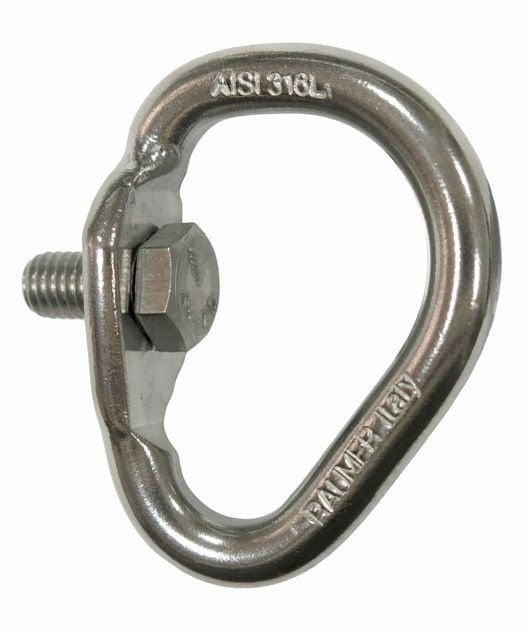

Raumer Anellox 8mm + M8 Security Screw

ANELLOX / Ø8 - stainless steel ring with M8 stainless screw for avoiding accidental loss

This ring has the same characteristics than the version with one hole of diam. 8 mm (art. 189). Features an M8 screw for avoiding accidental loss. The screw also makes it suitable for being fitted on the Raumer TAP and RAINOX M8 units.

This article is produced using stainless steel AISI 316L

Technical Specifications

• Material: A316L
• Ring x 8 mm wire
• Screw M8x18 A4
• Weight: 85 gr
• Dimensions: 21 x 60 x 45 mm
• Static shear strength: 25 KN
• Static resistance to extraction: 20 KN
• Device usable by 1 person at a time
