Raumer Anellox 8mm A316L

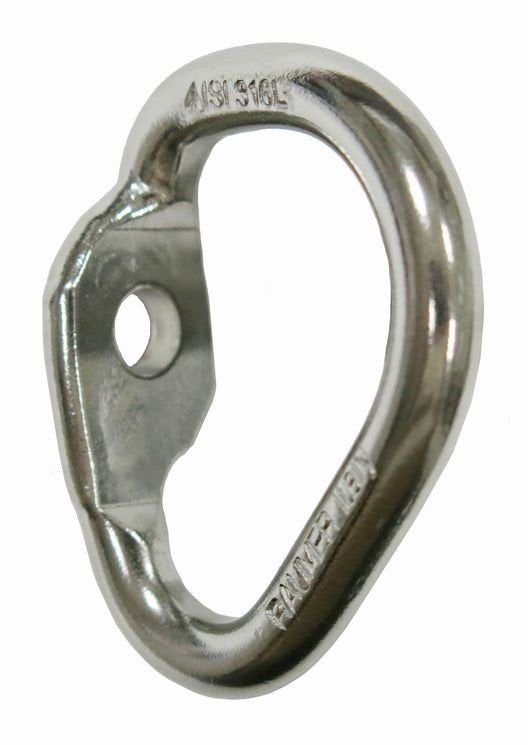

ANELLOX Ø8mm - ring in stainless steel (hole diam. 8 mm).

This anchor device made up of a ring is well used in caving because it allows complex route equipment even without any carabiners.
Made of stainless steel wire of 8 mm in diameter. It has a particular shape designed for withstanding multidirectional stress, that makes it ideal also for overhangs.
The hole of 8 mm in diameter allows the ring to be screw fixed or wall plugged by means of screw anchors M8.

TECHNICAL SPECIFICATIONS

• The new shape has been redesigned with a new radius that allows multidirectional traction; you can indeed use it in the three directions, not with the old model, and is also ideal for equipping roofs or overhangs.
• The new curvature minimizes the lever arm, because it always keeps the user as close as possible to the wall and allows to simultaneously insert rope and a carabiner.
• This anchoring ring is very appreciated in caving and rescue because it allows the creation of complex rigging systems.
• The 8mm hole means it can be attached to the rock using screws or M8 screw anchors (such as art.149 – 122).

CERTIFICATION

• Complies with EN 795:2012 – Anchor type A
• Complies with EN 959:2018 – Rock Anchors
• UIAA 123

REFERENCES

• Material: A316L
• Weight: 70 grams
• Dimensions: 21 x 60 x 45 mm
• Static Shear Resistence: 25 KN
• Extraction Static Strenght: 20 KN
• Usable by 1 person at a time
