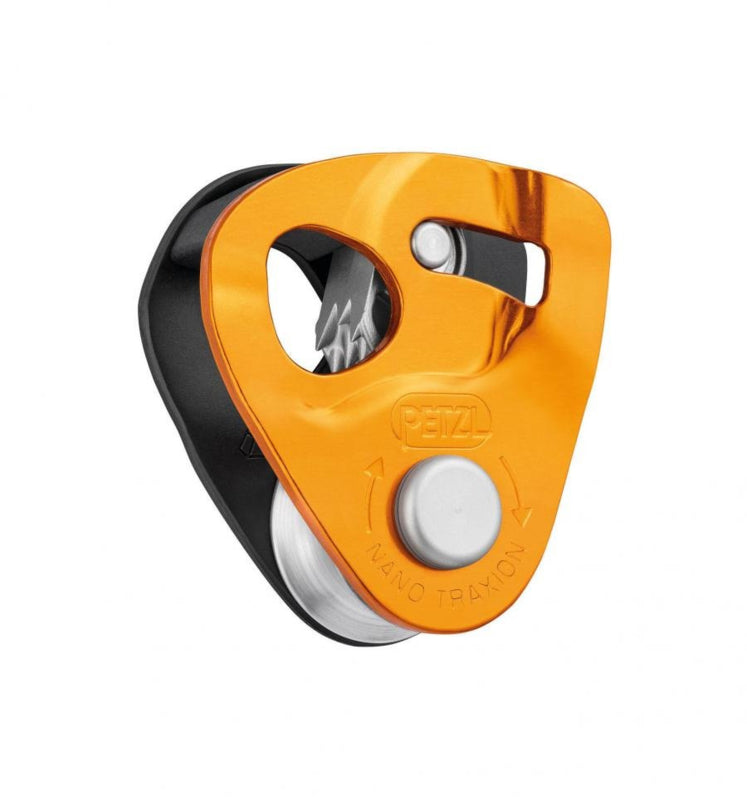

Petzl Nano Traxion

is an ultra-lightweight (52 g) and compact progress-capture pulley designed for tactical operations and rescue.

Sealed ball bearings provide excellent efficiency (91 %).

Setting up the rope

• Rope installation diagrams engraved inside pulley.
• For use on 7 to 11 mm diameter ropes.

Product specifications

• Weight: 52 g
• Certification(s): CE EN 567, UIAA
• Min. rope diameter: 7 mm
• Max. rope diameter: 11 mm
• Sheave type: sealed ball bearings
• Sheave diameter: 25 mm
• Breaking strength: 2 x 7.5 = 15 kN
• Breaking strength as progress-capture pulley: 4 kN
• Efficiency: 91 %
