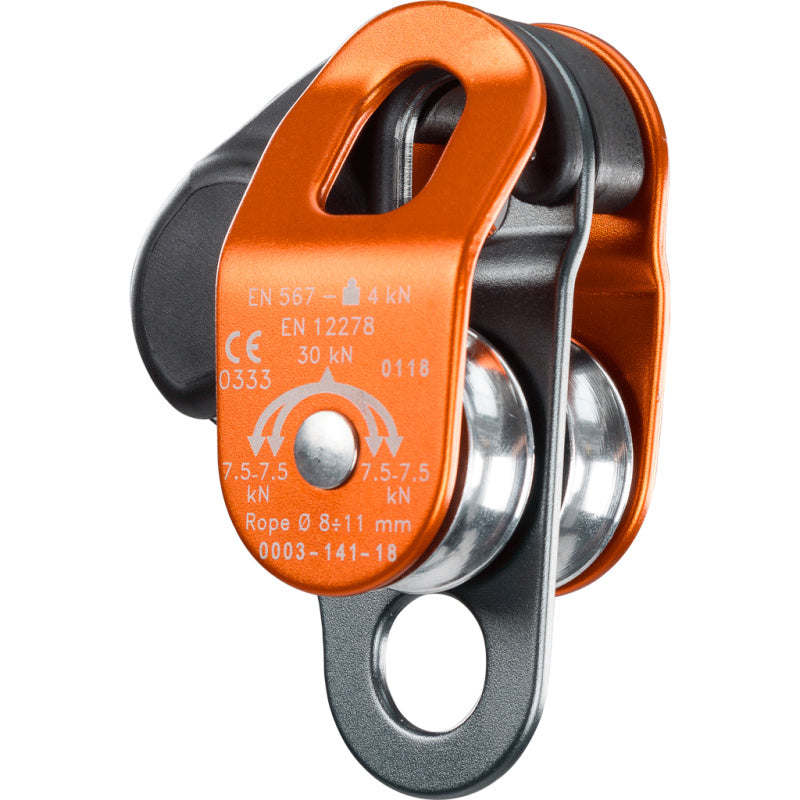

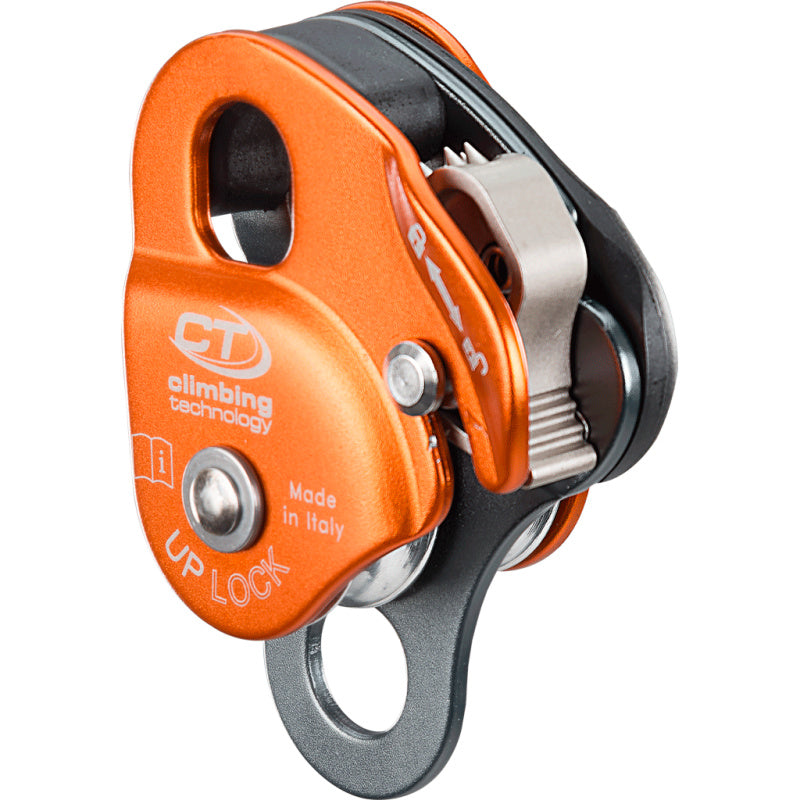

CT UP Lock
Double locking pulley, designed for the creation of an auto-blocking rescue winch in combination with the CT UP ROLL pulley.
Main characteristics:
- Anodized light alloy side plates and pulleys, cast stainless steel cam;
- Pulleys mounted on ball bearings;
- Equipped with freelock system which allows to unlock or lock the cam through the use of one hand, even when wearing gloves;
- To be used with 8 to 11 mm EN 892 or EN 1891 ropes or with a Ø 8.0 mm EN 564 cord.
- Breaking load: 30kN - 7,5kN
- Working Load Limit: 6kN - 1,5kN
- Weight: 175 gram
- Efficiency factor: 90%
- Ball bearing wheels
