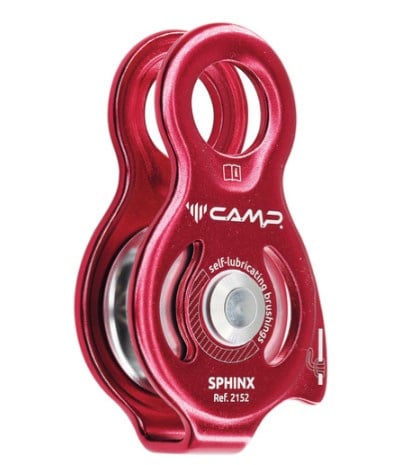

CAMP Sphinx Pulley

An ultra slim, highly functional fixed pulley.

An ultra slim, highly functional fixed pulley. The main attachment point allows for full rotation of the carabiner. For use with ropes up to 13 mm. Prusik minding, the self-locking knot can be installed on one side. Self-lubricated bushings are sufficient for light applications at low speed. Efficiency: 80%. Aluminum alloy body and wheel, stainless steel axle.

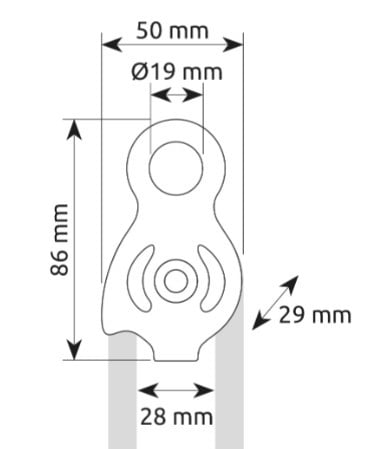

Technical specifications

• Sheave material: Aluminum alloy
• Side plates type: Fixed
• Inner sheave diameter: 28 mm
• Max rope diameter: 7 mm
• Max rope diameter:13 mm
• Maximum working load: 4 kN (900 LBF)
• Breaking strength: 24 kN (5396 LBF)
• Efficiency (%):80
• Weight: 95 g (3.4 oz)
• Certification:CE EN 12278
