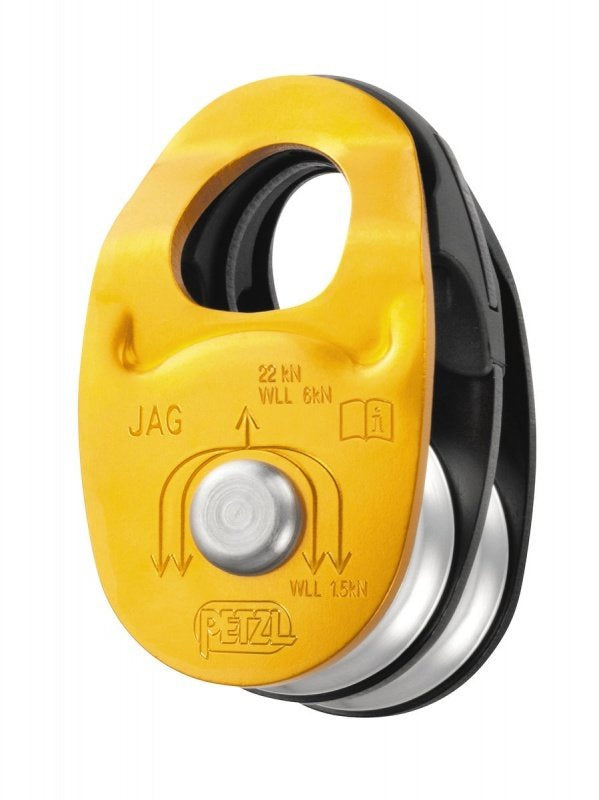

Petzl JAG

Is a double pulley with high efficiency without backstop.
Designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system. Sheaves mounted on sealed ball bearings for excellent efficiency.

Specifications

• Weight: 120 g
• Certification(s): CE EN 12278, NFPA 1983 Technical Use
• Material(s): aluminum, nylon
• Min. rope diameter: 8 mm
• Max. rope diameter: 11 mm
• Sheave type: sealed ball bearings
• Sheave diameter: 25 mm
• Working load: 2 × 1,5 kN × 2 = 6 kN
• Breaking strength: 2 × 4 kN × 2 = 16 kN
• Efficiency: 91 %
